bitx20 v3 build – bfo

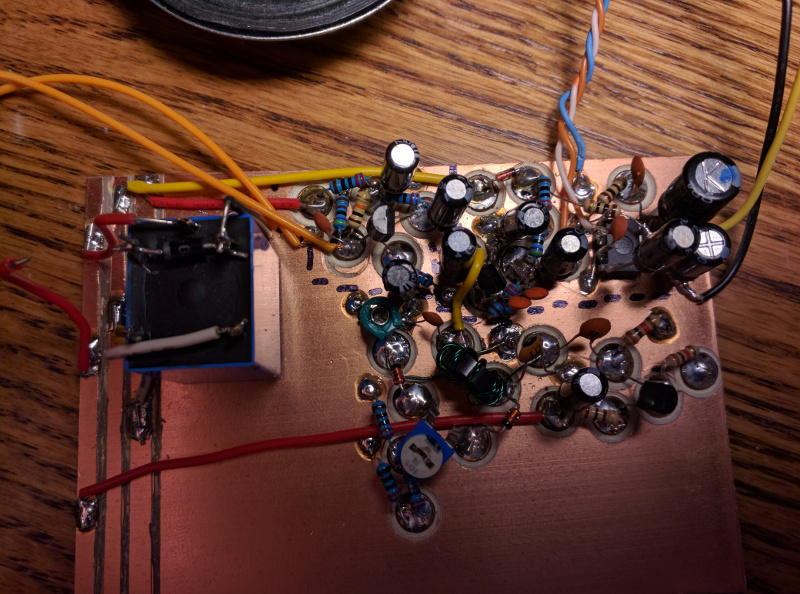

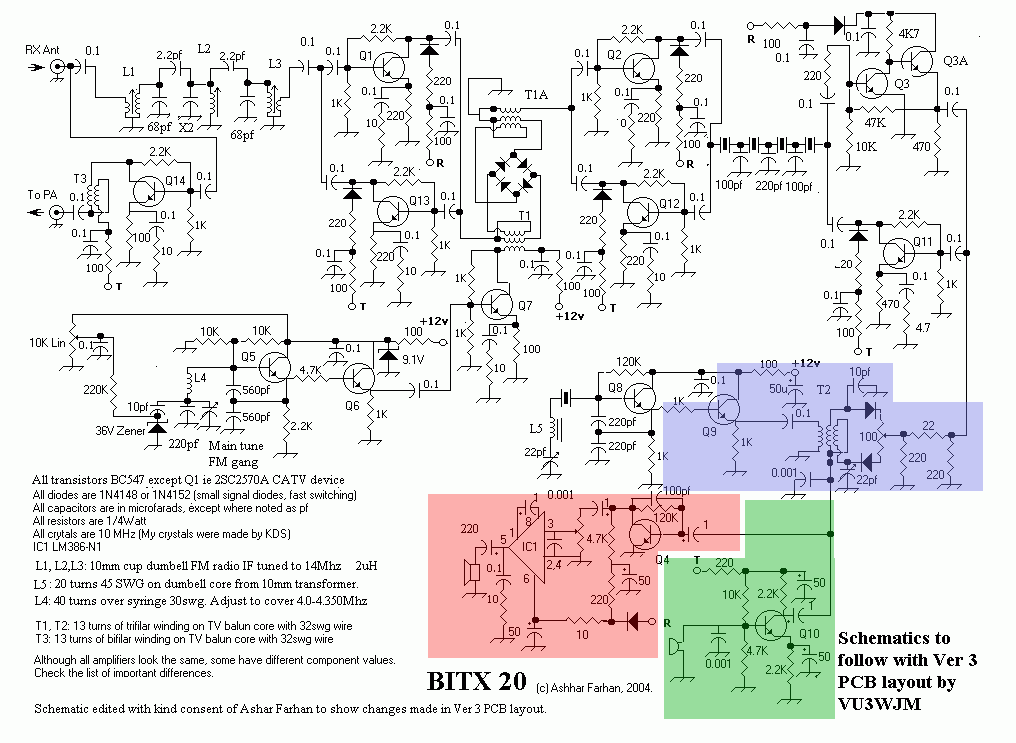

So I guess I’m going with a DDS vfo and bfo. I put together the most of the bfo from the schematic, but instead of using a crystal, I will pipe in the dds signal into the base of Q9.


For the transformer, I did 8 trifilar turns of 28 gauge wire on an FT37-43 toroid.
