bitx20 v3 build – vfo

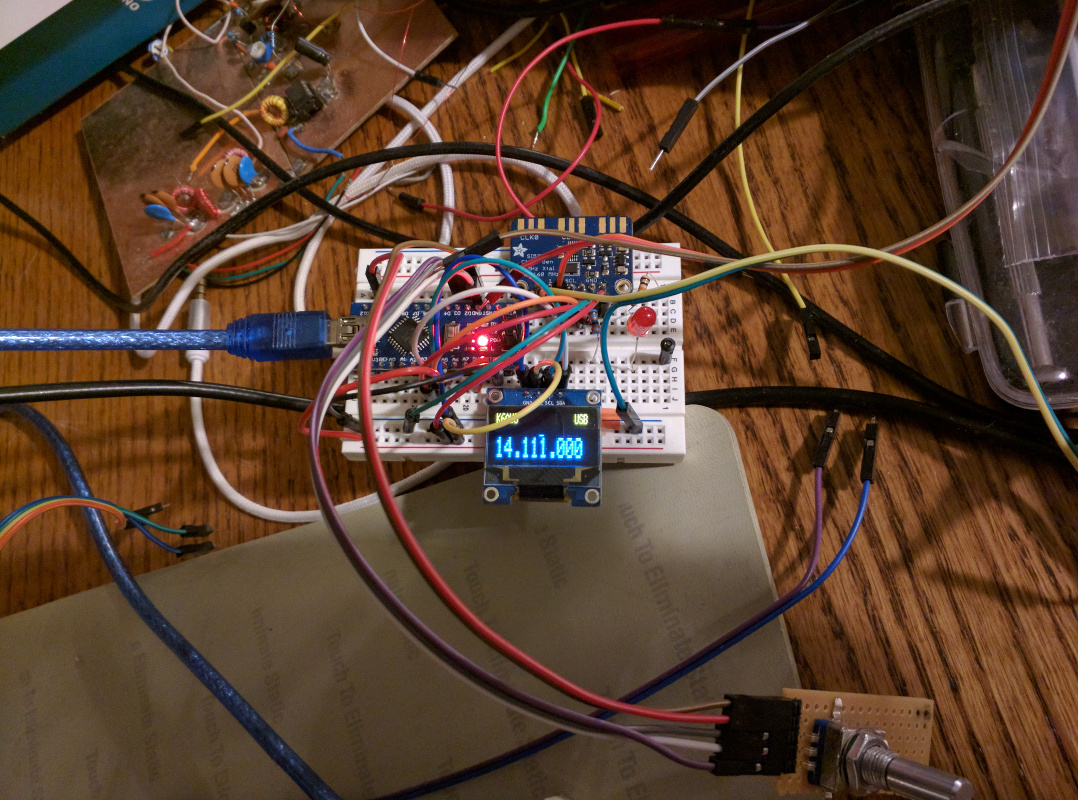

I’ve got the main bitx board built enough to test, so now I need the bfo and vfo. I put together an arduino nano, an si5351 breakout board, and a small oled display on a breadboard. I modified some of the vfo code I’ve used before and soldered clk0 and clk2 to the bitx with some rg174 coax.

/images/bitx20_vf0_web-1.jpg

/images/bitx20_vfo_full_web.jpg

/images/bitx20_vfo_waveform_web.jpg

I don’t have a 20 meter antenna up yet, so I can only test with a signal generator. The vfo (or the signal generator) is a little off, but the receiver seems to be working okay. I get a clear tone by holding the signal generator lead near the board.

Here is the code so far:

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
#include <Rotary.h>
#include <si5351.h>
#include <Wire.h>
#include <Adafruit_SSD1306.h>


#define OLED_RESET 4
Adafruit_SSD1306 display(OLED_RESET);

#define F_MIN        100000000UL
#define F_MAX        5000000000UL

#define ENCODER_A    2
#define ENCODER_B    3
#define ENCODER_BTN  11

#define SWITCH_PIN 12
int switchstate = 0;

Si5351 si5351;
Rotary r = Rotary(ENCODER_A, ENCODER_B);
volatile int32_t LSB = 999950000ULL;
volatile int32_t USB = 1000150000ULL;
volatile int32_t bfo = 1000150000ULL; //start in usb
//These USB/LSB frequencies are added to or subtracted from the vfo frequency in the "Loop()"
volatile int32_t vfo = 1404700000ULL / SI5351_FREQ_MULT; //start freq - change to suit
volatile uint32_t radix = 100;	//start step size - change to suit
boolean changed_f = 0;
String tbfo = "";


/**************************************/
/* Interrupt service routine for      */
/* encoder frequency change           */
/**************************************/
ISR(PCINT2_vect) {
  unsigned char result = r.process();
  if (result == DIR_CW)
    set_frequency(1);
  else if (result == DIR_CCW)
    set_frequency(-1);
}

/**************************************/
/* Change the frequency               */
/* dir = 1    Increment               */
/* dir = -1   Decrement               */
/**************************************/
void set_frequency(short dir)
{
  if (dir == 1)
    vfo += radix;
  if (dir == -1)
    vfo -= radix;

  changed_f = 1;
}

/**************************************/
/* Read the button with debouncing    */
/**************************************/
boolean get_button()
{
  if (!digitalRead(ENCODER_BTN))
  {
    delay(20);
    if (!digitalRead(ENCODER_BTN))
    {
      while (!digitalRead(ENCODER_BTN));
      return 1;
    }
  }
  return 0;
}

/**************************************/
/* Displays the frequency             */
/**************************************/
void display_frequency()
{
  uint16_t f, g;

  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(WHITE);
  display.setCursor(0,0);
  display.print("BITX20            ");
  display.println(tbfo);


  switch (radix)
  {
    case 1:
      display.println("                  _");
      break;
    case 10:
      display.println("                _");
      break;
    case 100:
      display.println("              _");
      break;
    case 1000:
      display.println("          _");
      break;
    case 10000:
      display.println("        _");
      break;
    case 100000:
      display.println("      _");
      break;
  }

    display.setTextSize(2);

  f = vfo / 1000000;   //variable is now vfo instead of 'frequency'
  if (f < 10)
    display.print(' ');
  display.print(f);
  display.print('.');
  f = (vfo % 1000000) / 1000;
  if (f < 100)
    display.print('0');
  if (f < 10)
    display.print('0');
  display.print(f);
  display.print('.');
  f = vfo % 1000;
  if (f < 100)
    display.print('0');
  if (f < 10)
    display.print('0');
  display.print(f);


  display.display();
  display.clearDisplay();
}


void setup()
{
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  display.clearDisplay();


  pinMode(SWITCH_PIN, INPUT_PULLUP);

  Serial.begin(19200);

  Wire.begin();

  si5351.set_correction(140); //**mine. There is a calibration sketch in File/Examples/si5351Arduino-Jason
  //where you can determine the correction by using the serial monitor.

  //initialize the Si5351
  si5351.init(SI5351_CRYSTAL_LOAD_8PF, 0); //If you're using a 27Mhz crystal, put in 27000000 instead of 0
  // 0 is the default crystal frequency of 25Mhz.

  si5351.set_pll(SI5351_PLL_FIXED, SI5351_PLLA);
  // Set CLK0 to output the starting "vfo" frequency as set above by vfo = ?

  //Serial.println((long)((vfo * SI5351_FREQ_MULT) + bfo) * -1);
  si5351.set_freq(((vfo * SI5351_FREQ_MULT) - bfo), SI5351_PLL_FIXED, SI5351_CLK0);
  volatile uint32_t vfoT = abs((vfo * SI5351_FREQ_MULT) - bfo);
  tbfo = "USB";
  // Set CLK2 to output bfo frequency
  si5351.set_freq( bfo, 0, SI5351_CLK2);
  //si5351.drive_strength(SI5351_CLK0,SI5351_DRIVE_2MA); //you can set this to 2MA, 4MA, 6MA or 8MA
  //si5351.drive_strength(SI5351_CLK1,SI5351_DRIVE_2MA); //be careful though - measure into 50ohms
  //si5351.drive_strength(SI5351_CLK2,SI5351_DRIVE_2MA); //

  Splash();

  pinMode(ENCODER_BTN, INPUT_PULLUP);
  PCICR |= (1 << PCIE2);           // Enable pin change interrupt for the encoder
  PCMSK2 |= (1 << PCINT18) | (1 << PCINT19);
  sei();
  display_frequency();  // Update the display
}


void loop()
{

  // Update the display if the frequency has been changed
  if (changed_f)
  {
    display_frequency();


    //Serial.println((long)((vfo * SI5351_FREQ_MULT) + bfo) * -1);
    si5351.set_freq(((vfo * SI5351_FREQ_MULT) - bfo), SI5351_PLL_FIXED, SI5351_CLK0);
    //you can also subtract the bfo to suit your needs
    //si5351.set_freq((vfo * SI5351_FREQ_MULT) - bfo  , SI5351_PLL_FIXED, SI5351_CLK0);

    switchstate = digitalRead(SWITCH_PIN);
    if (switchstate == HIGH) {
      //USB
      bfo = USB;
      tbfo = "USB";
      si5351.set_freq( bfo, 0, SI5351_CLK2);
      Serial.println("We've switched from LSB to USB");
    } else {
      // LSB
      bfo = LSB;
      tbfo = "LSB";
      si5351.set_freq( bfo, 0, SI5351_CLK2);
      Serial.println("We've switched from USB to LSB");

    }

    changed_f = 0;
  }

  // Button press changes the frequency change step for 1 Hz steps
  if (get_button())
  {
    switch (radix)
    {
      case 1:
        radix = 10;
        break;
      case 10:
        radix = 100;
        break;
      case 100:
        radix = 1000;
        break;
      case 1000:
        radix = 10000;
        break;
      case 10000:
        radix = 100000;
        break;
      case 100000:
        radix = 1;
        break;
    }
    display_frequency();
  }

}

void Splash()
{
  display.clearDisplay();
  display.setTextSize(4);
  display.setTextColor(WHITE);
  display.setCursor(0,0);
  display.println("BITX");
  display.display();
  delay(4000);
  display.clearDisplay();
}
```
