g5rv antenna

While working on my bitx, I was in need of a 20 meter antenna. I strung up a quick dipole. but it didn’t work very well. I’ve been meaning to put together a multiband antenna for a while and since I had pretty much everything I would need, I built a G5RV antenna. More information about the G5RV antenna, including formulas, measurements, etc, can be found here. The basic parts that I used were:

PVC end caps eye bolts old tv twin lead 14 gauge stranded THHN screw on cable clamps electric fence insulators SO239 connector

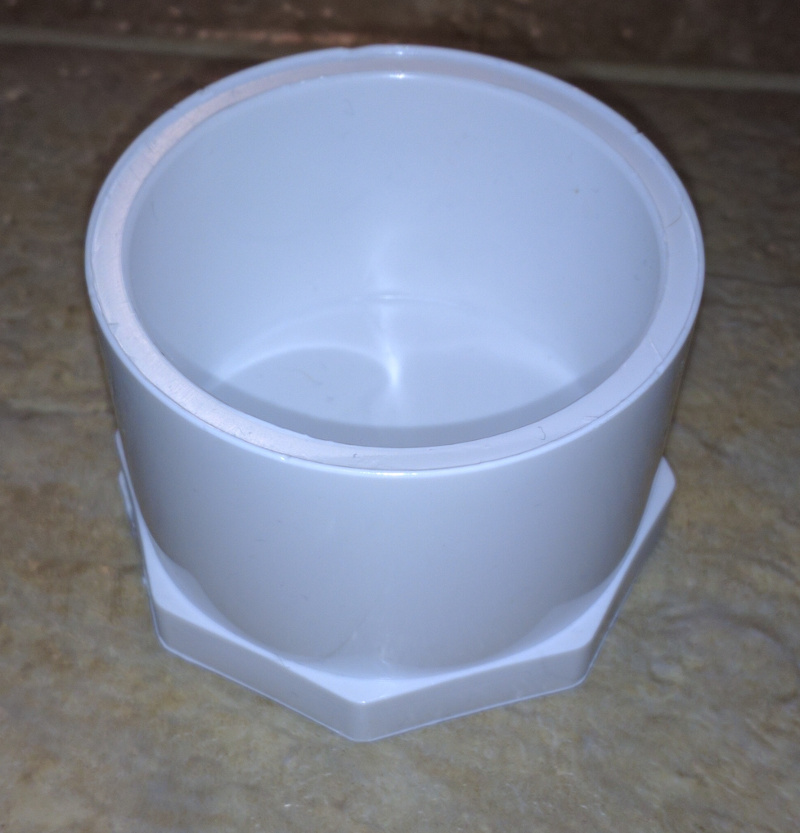

I started with the PVC end caps.

/images/g5rv-1-web.jpg

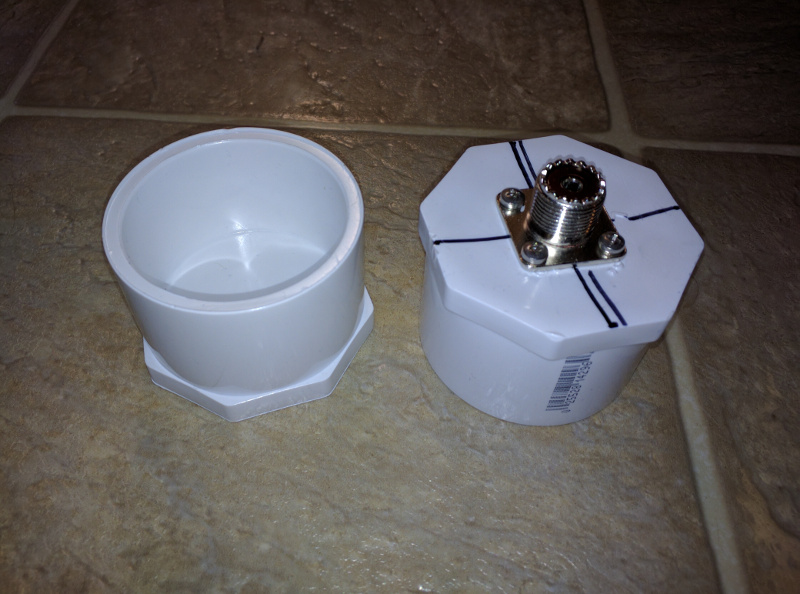

I mounted an so239 connector to the outside of the cap.

/images/g5rv-2-web.jpg

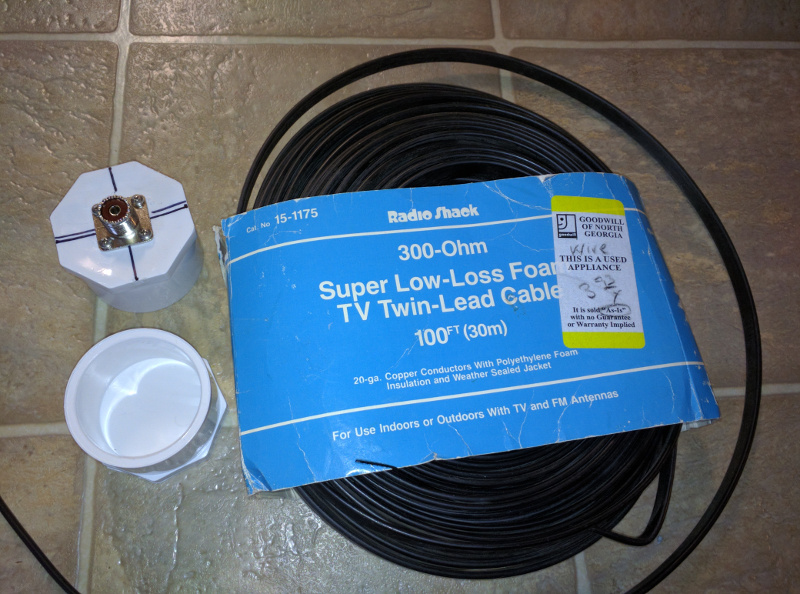

I found a roll of old twin lead at the thrift store for a few bucks.

/images/g5rv-3-web.jpg

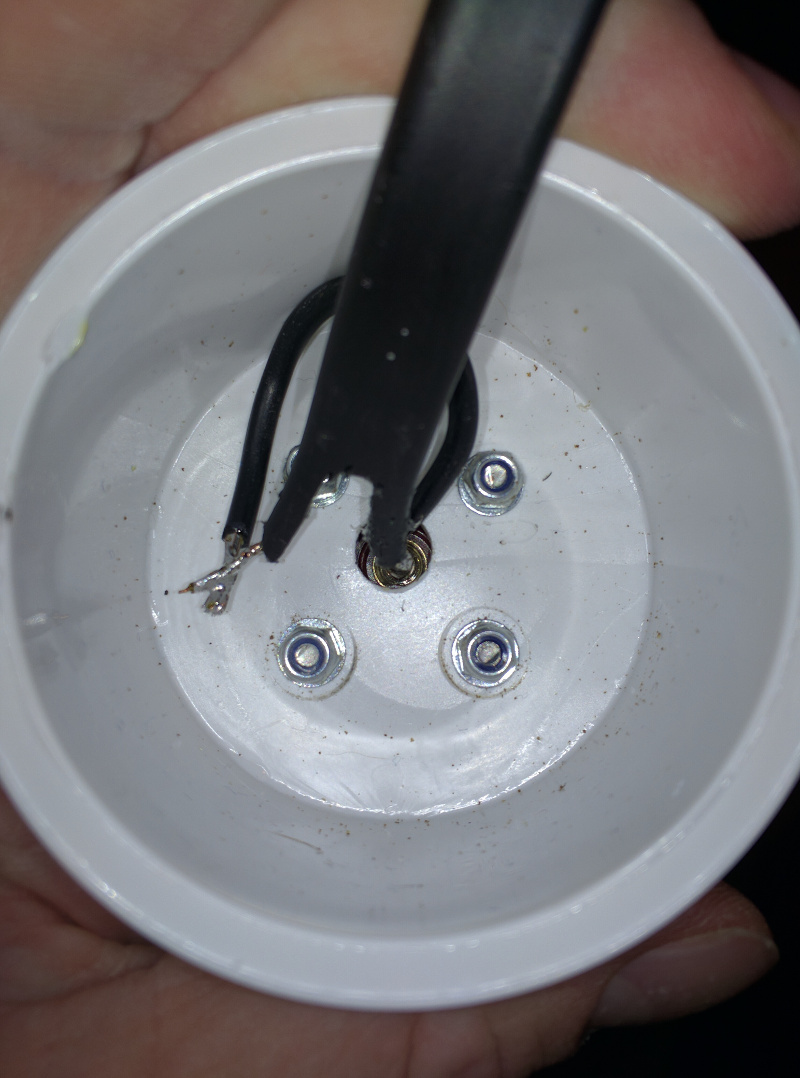

I attached and soldered the twin lead to the so239 connector.

/images/g5rv-5-web.jpg

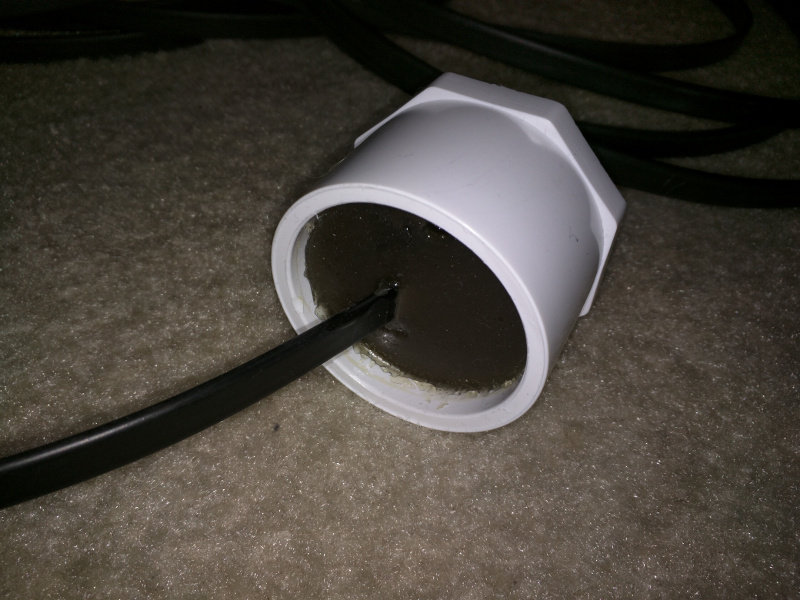

Then I filled the cap when fiberglass resin and let it cure.

/images/g5rv-11-web.jpg

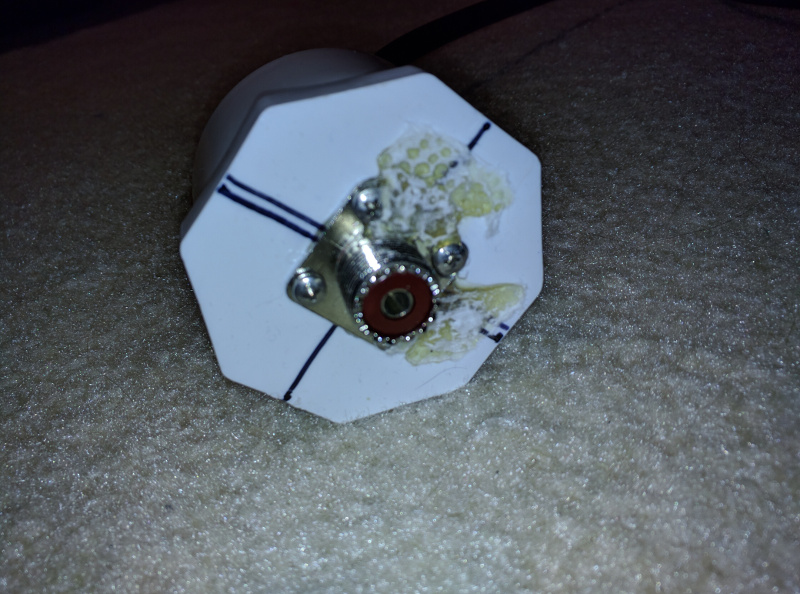

Some leaked out around the connector, but it was easy to scrape off.

/images/g5rv-10-web.jpg

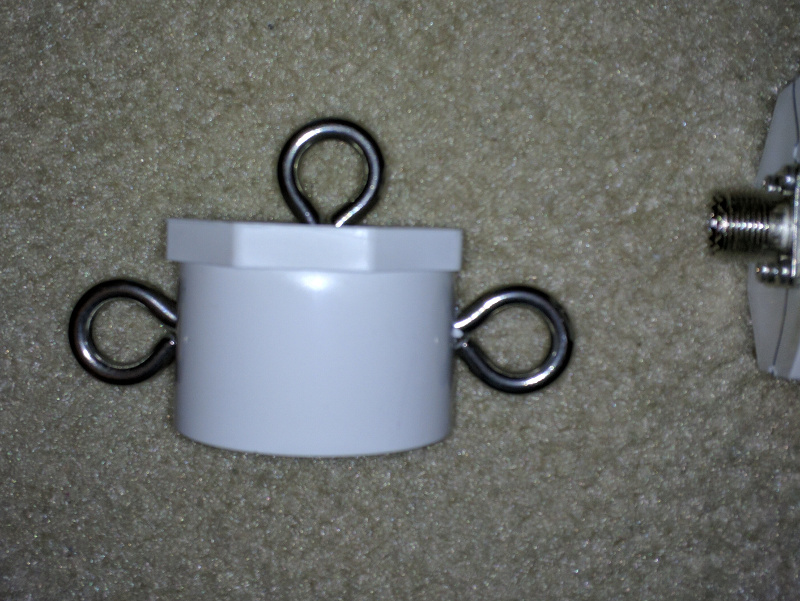

Next, I added eye bolts to the other PVC end cap. Two to attach each side of the dipole and one on top to hang the antenna.

/images/g5rv-6-web.jpg

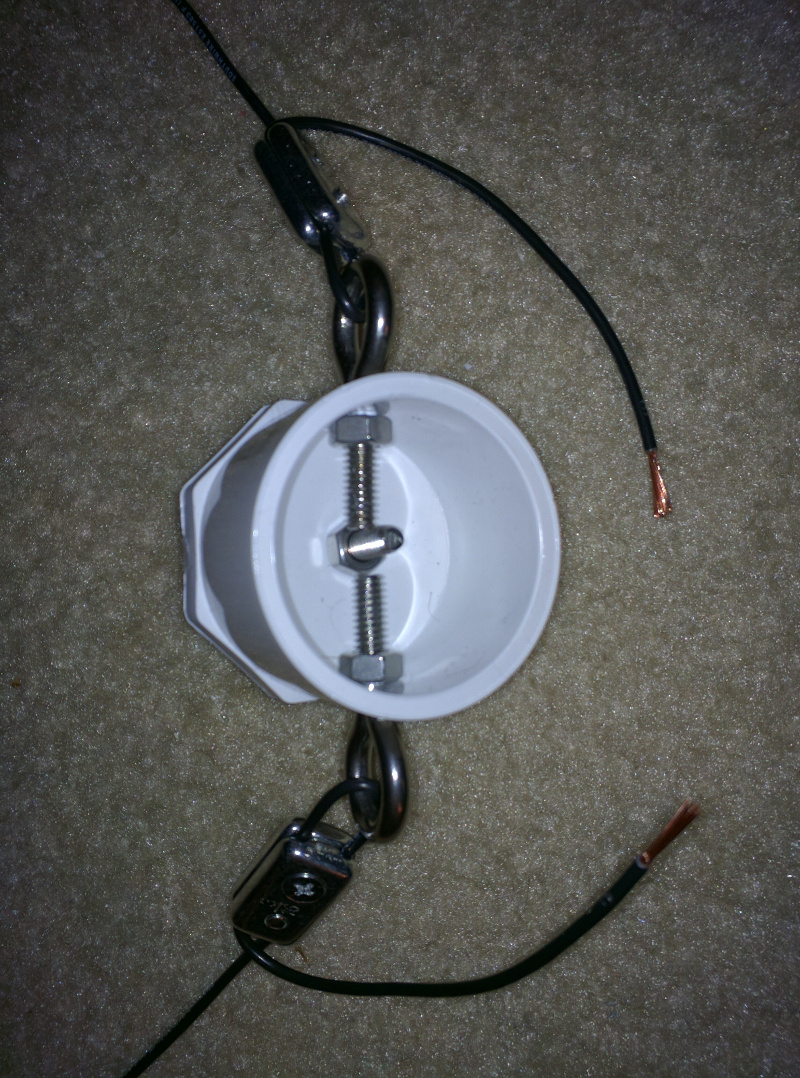

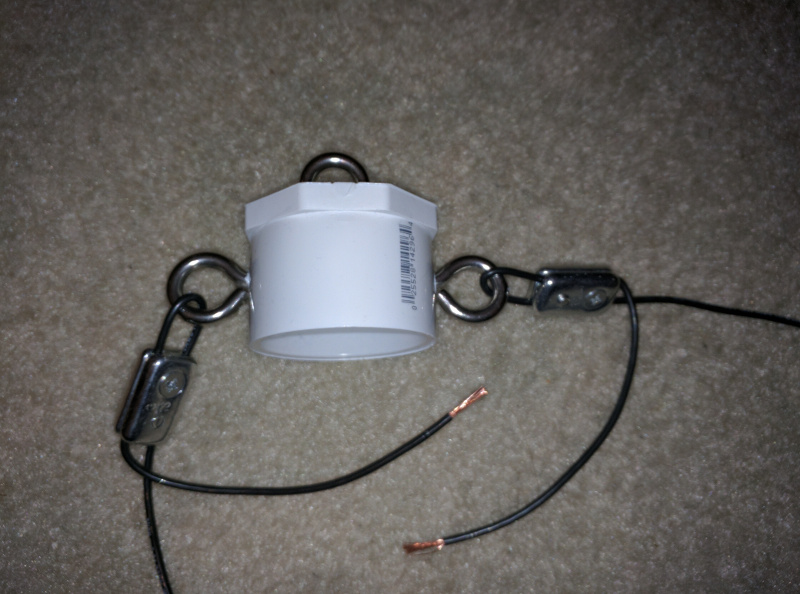

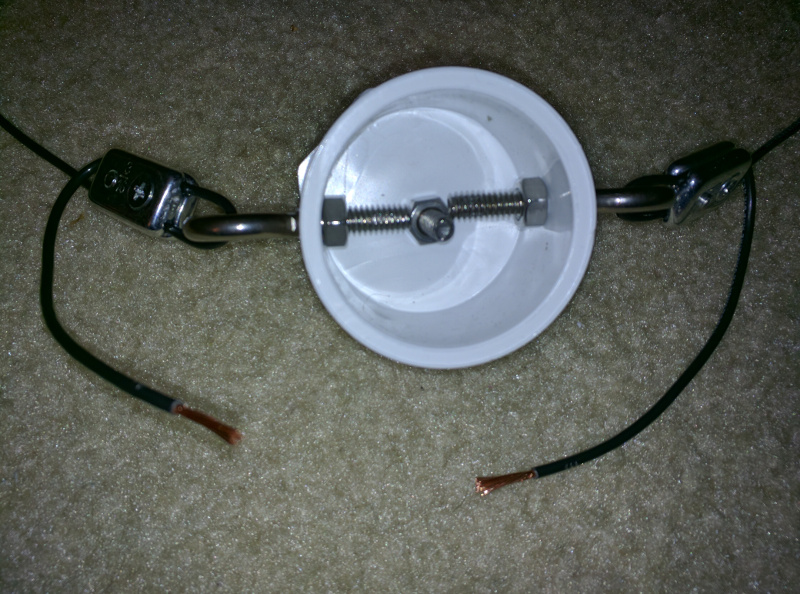

Next, I measured out the wire and connected each end to the end cap using the cable clamps.

/images/g5rv-7-web.jpg

/images/g5rv-8-web.jpg

/images/g5rv-12-web.jpg

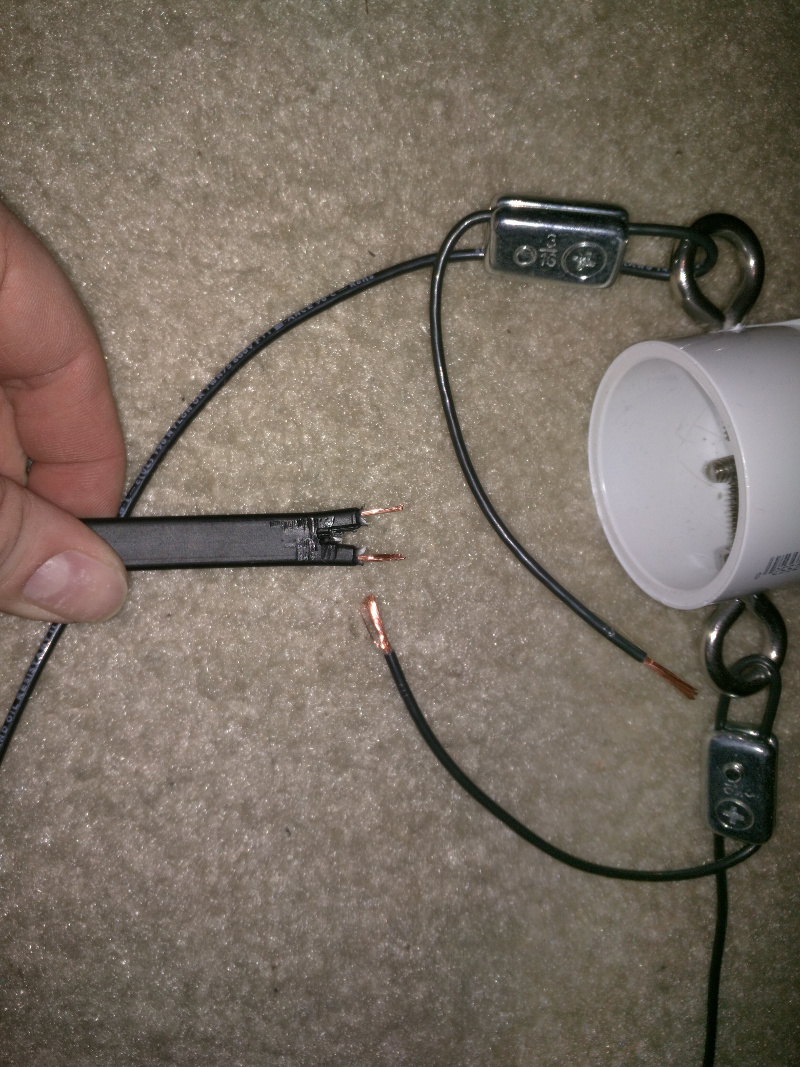

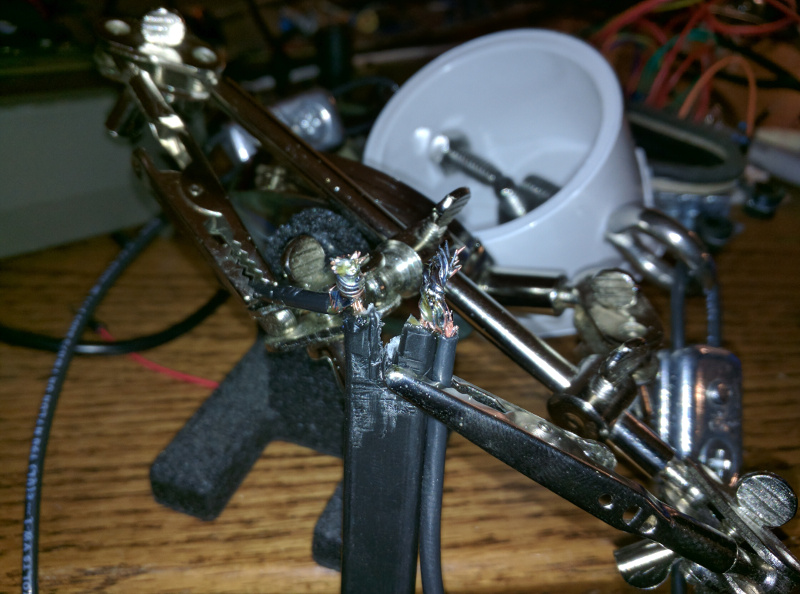

I then connected and soldered the other end of the twin lead to the two dipole arms.

/images/g5rv-13-web.jpg

/images/g5rv-14-web.jpg

/images/g5rv-15-web.jpg

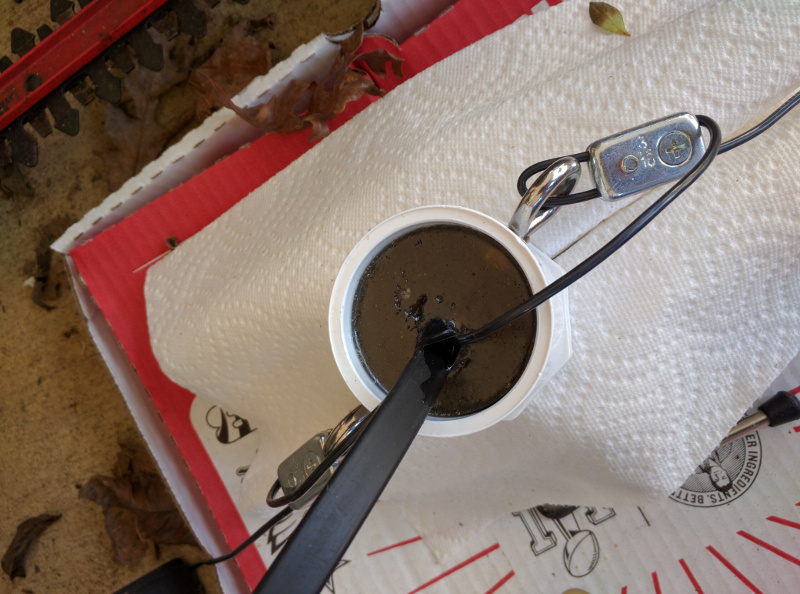

Then I potted it in fiberglass resin.

/images/g5rv-16-web.jpg

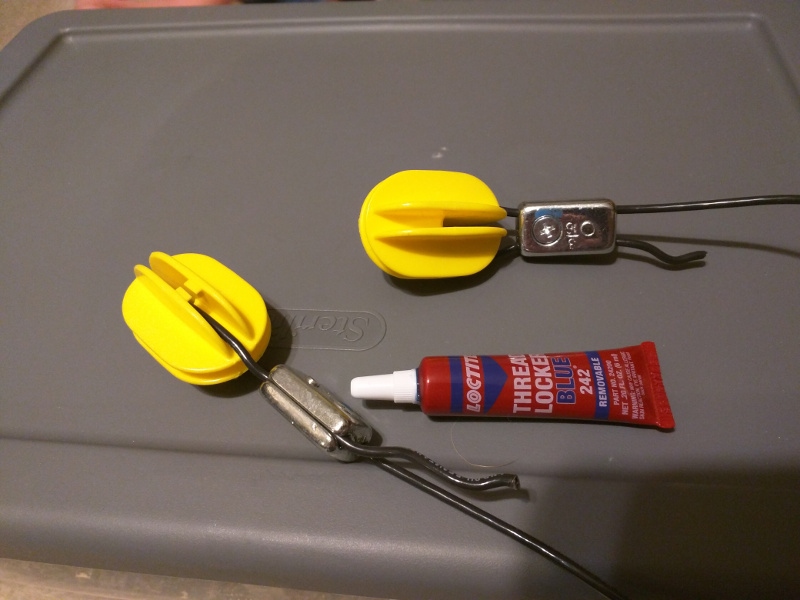

Next, I added the electric fence insulators to the ends using more cable clamps. I went back and used some loctite on on all of the cable clamp screws.

/images/g5rv-17-web.jpg

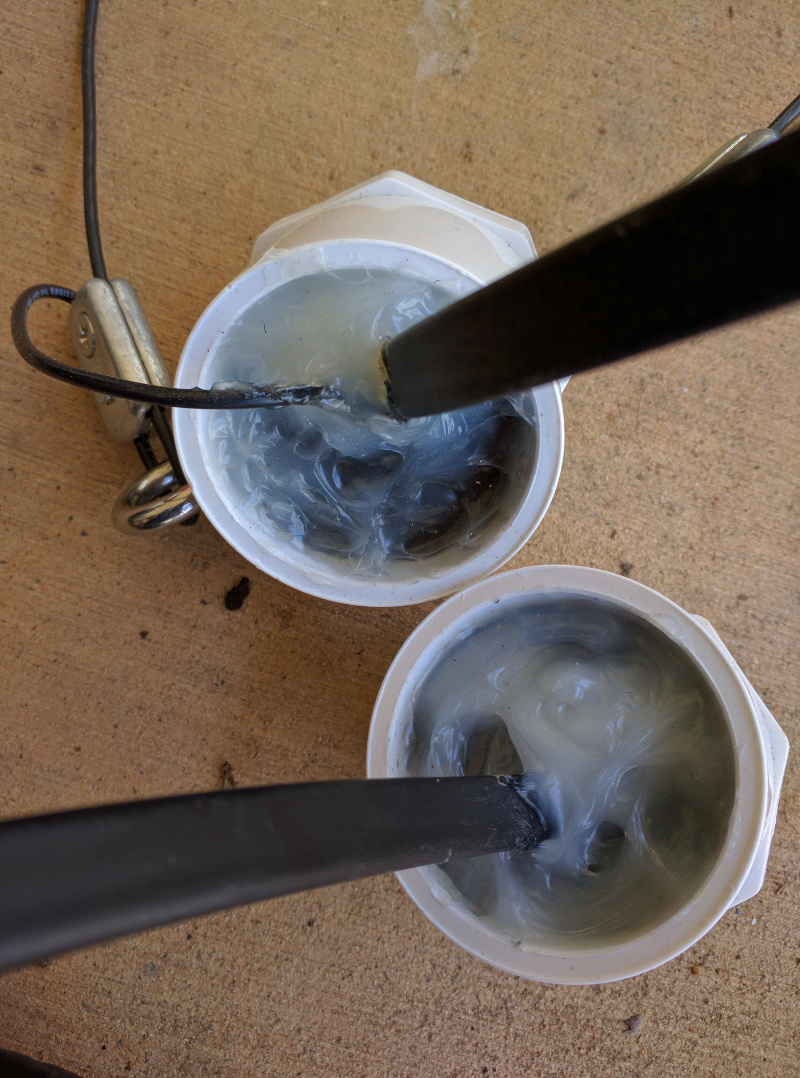

Once the fiberglass cured, it pulled away from the edges of the PVC end caps. I took some silicon and filled in around the whole tops of the end caps for a little extra waterproofing.

/images/g5rv-18-web.jpg

Once I got the antenna outside, I quickly realized I didn’t really have a good place for it. It is a long antenna. The full width is 102 feet. I temporarily strung it up between the house and a tree and left the twin lead laying across the ground and it seemed to receive well on 20 and 40. Once I find a permanent place for it, I will test out my tuner and and report back on how well this thing works.
