self-balancing robot

So, about a week or two ago, I came across this post on hackaday, which led me to this site with instructions for building a self-balancing robot. I’ve been wanting to make one of these for a while, so I figured I would give it a shot.

I mostly copied the same design from Joop Brokking, so if you are building one, I’d suggest following his youtube video series on the design and construction of the robot.

I used the parts that I had on hand, so my stepper drivers are different and I used an IR remote and receiver instead of the RF that Joop used.

I began by building the circuit on a breadboard to make sure Joop’s code would work with my stepper drivers.

/images/bal_breadboard_web.jpg

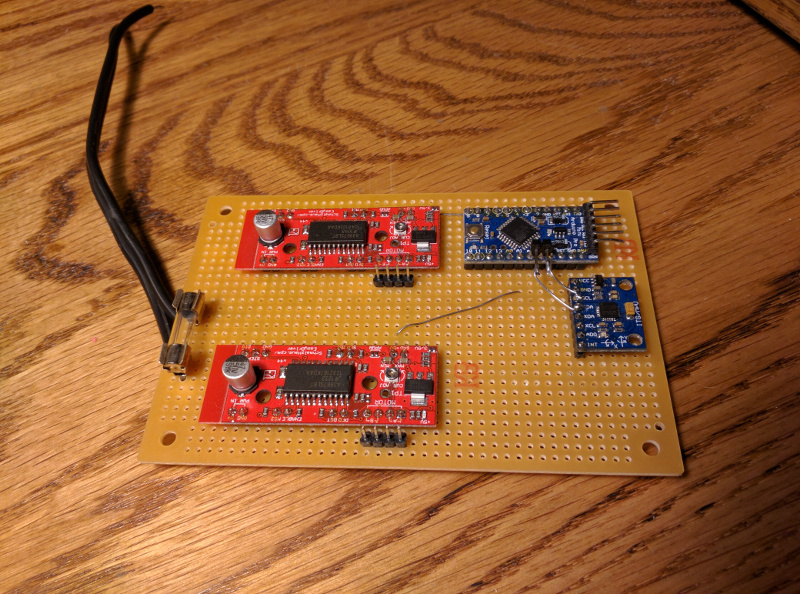

Everything looked good, so I moved the circuit to protoboard.

/images/bal_board_web.jpg

I built the frame for the robot out of some scrap pieces of wood and mdf. The wheels were parts of a meccano set that I just forced onto the stepper axle.

/images/bal_web.jpg

/images/bal_1_web.jpg

/images/bal_2_web.jpg

  I modified the code from the original for this machine to work. It is pasted below.

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
///////////////////////////////////////////////////////////////////////////////////////
//Terms of use
///////////////////////////////////////////////////////////////////////////////////////
//THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
//IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
//FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
//AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
//LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
//OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
//THE SOFTWARE.
///////////////////////////////////////////////////////////////////////////////////////
#include "PinChangeInterrupt.h"                              // Include PinChangeInterrupt to run IR library interrupt on alternate pin
#include "IRLremote.h"                                       // Include IR library

#include <Wire.h>                                            //Include the Wire.h library so we can communicate with the gyro

#define IRPIN 11
CHashIR IRLremote;

unsigned long right = 4285958208;                           // IR code to turn right
unsigned long left = 36908096;                              // IR code to turn left
unsigned long back = 2139216528;                            // IR code to move back
unsigned long fwd = 1535075151;                             // IR code to move forward


int gyro_address = 0x68;                                     //MPU-6050 I2C address (0x68 or 0x69)
int acc_calibration_value = 480;                            //Enter the accelerometer calibration value

//Various settings
float pid_p_gain = 15;                                       //Gain setting for the P-controller (15)
float pid_i_gain = 1.5;                                      //Gain setting for the I-controller (1.5)
float pid_d_gain = 30;                                       //Gain setting for the D-controller (30)
float turning_speed = 50;                                    //Turning speed (20)
float max_target_speed = 800;                                //Max target speed (100)

///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//Declaring global variables
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
unsigned long received_cmd;
byte start,low_bat;

int left_motor, throttle_left_motor, throttle_counter_left_motor, throttle_left_motor_memory;
int right_motor, throttle_right_motor, throttle_counter_right_motor, throttle_right_motor_memory;
int battery_voltage;
int receive_counter;
int gyro_pitch_data_raw, gyro_yaw_data_raw, accelerometer_data_raw;

long gyro_yaw_calibration_value, gyro_pitch_calibration_value;

unsigned long loop_timer;

float angle_gyro, angle_acc, angle, self_balance_pid_setpoint;
float pid_error_temp, pid_i_mem, pid_setpoint, gyro_input, pid_output, pid_last_d_error;
float pid_output_left, pid_output_right;

////////////////////////////r///////////////////////////////////////////////////////////////////////////////////////////////////////////
//Setup basic functions
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
void setup(){

 if (!IRLremote.begin(IRPIN)) {
    while(1) {                                                              // Blink LED in pattern if IR not working
        digitalWrite(13, HIGH);
        delay(200);
        digitalWrite(13, LOW);
        delay(100);
    }

 }

  Wire.begin();                                                             //Start the I2C bus as master
  TWBR = 12;                                                                //Set the I2C clock speed to 400kHz

  //To create a variable pulse for controlling the stepper motors a timer is created that will execute a piece of code (subroutine) every 20us
  //This subroutine is called TIMER2_COMPA_vect
  TCCR2A = 0;                                                               //Make sure that the TCCR2A register is set to zero
  TCCR2B = 0;                                                               //Make sure that the TCCR2A register is set to zero
  TIMSK2 |= (1 << OCIE2A);                                                  //Set the interupt enable bit OCIE2A in the TIMSK2 register
  TCCR2B |= (1 << CS21);                                                    //Set the CS21 bit in the TCCRB register to set the prescaler to 8
  OCR2A = 39;  //30us = 59  50us=99                                         //The compare register is set to 39 => 20us / (1s / (16.000.000MHz / 8)) - 1
  TCCR2A |= (1 << WGM21);                                                   //Set counter 2 to CTC (clear timer on compare) mode

  //By default the MPU-6050 sleeps. So we have to wake it up.
  Wire.beginTransmission(gyro_address);                                     //Start communication with the address found during search.
  Wire.write(0x6B);                                                         //We want to write to the PWR_MGMT_1 register (6B hex)
  Wire.write(0x00);                                                         //Set the register bits as 00000000 to activate the gyro
  Wire.endTransmission();                                                   //End the transmission with the gyro.
  //Set the full scale of the gyro to +/- 250 degrees per second
  Wire.beginTransmission(gyro_address);                                     //Start communication with the address found during search.
  Wire.write(0x1B);                                                         //We want to write to the GYRO_CONFIG register (1B hex)
  Wire.write(0x00);                                                         //Set the register bits as 00000000 (250dps full scale)
  Wire.endTransmission();                                                   //End the transmission with the gyro
  //Set the full scale of the accelerometer to +/- 4g.
  Wire.beginTransmission(gyro_address);                                     //Start communication with the address found during search.
  Wire.write(0x1C);                                                         //We want to write to the ACCEL_CONFIG register (1A hex)
  Wire.write(0x08);                                                         //Set the register bits as 00001000 (+/- 4g full scale range)
  Wire.endTransmission();                                                   //End the transmission with the gyro
  //Set some filtering to improve the raw data.
  Wire.beginTransmission(gyro_address);                                     //Start communication with the address found during search
  Wire.write(0x1A);                                                         //We want to write to the CONFIG register (1A hex)
  Wire.write(0x03);                                                         //Set the register bits as 00000011 (Set Digital Low Pass Filter to ~43Hz)
  Wire.endTransmission();                                                   //End the transmission with the gyro

  pinMode(2, OUTPUT);                                                       //Configure pin 2 as output
  pinMode(3, OUTPUT);                                                       //Configure pin 3 as output
  pinMode(4, OUTPUT);                                                       //Configure pin 4 as output
  pinMode(5, OUTPUT);                                                       //Configure pin 5 as output
  pinMode(13, OUTPUT);                                                      //Configure pin 6 as output

  for(receive_counter = 0; receive_counter < 500; receive_counter++){       //Create 500 loops
    if(receive_counter % 15 == 0)digitalWrite(13, !digitalRead(13));        //Change the state of the LED every 15 loops to make the LED blink
    Wire.beginTransmission(gyro_address);                                   //Start communication with the gyro
    Wire.write(0x43);                                                       //Start reading the Who_am_I register 75h
    Wire.endTransmission();                                                 //End the transmission
    Wire.requestFrom(gyro_address, 4);                                      //Request 2 bytes from the gyro
    gyro_yaw_calibration_value += Wire.read()<<8|Wire.read();               //Combine the two bytes to make one integer
    gyro_pitch_calibration_value += Wire.read()<<8|Wire.read();             //Combine the two bytes to make one integer
    delayMicroseconds(3700);                                                //Wait for 3700 microseconds to simulate the main program loop time
  }
  gyro_pitch_calibration_value /= 500;                                      //Divide the total value by 500 to get the avarage gyro offset
  gyro_yaw_calibration_value /= 500;                                        //Divide the total value by 500 to get the avarage gyro offset

  loop_timer = micros() + 4000;                                             //Set the loop_timer variable at the next end loop time

}

///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//Main program loop
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
void loop(){

  if(IRLremote.available()){  //If there is IR data available

    auto data = IRLremote.read();
    received_cmd = data.command;

    if (received_cmd == fwd || received_cmd == back || received_cmd == left || received_cmd == right) {
      receive_counter = 0;  //Reset the receive_counter variable
    }
  }
  if(receive_counter <= 25)receive_counter ++;                              //The received command will be valid for 25 program loops (100 milliseconds)
  else received_cmd = 0;                                                //After 100 milliseconds the received_cmd is reset

  //Load the battery voltage to the battery_voltage variable.
  //85 is the voltage compensation for the diode.
  //Resistor voltage divider => (3.3k + 3.3k)/2.2k = 2.5
  //12.5V equals ~5V @ Analog 0.
  //12.5V equals 1023 analogRead(0).
  //1250 / 1023 = 1.222.
  //The variable battery_voltage holds 1050 if the battery voltage is 10.5V.
  battery_voltage = (analogRead(0) * 1.222) + 85;

  if(battery_voltage < 1050 && battery_voltage > 800){                      //If battery voltage is below 10.5V and higher than 8.0V
    digitalWrite(13, HIGH);                                                 //Turn on the led if battery voltage is to low
    low_bat = 1;                                                            //Set the low_bat variable to 1
  }

  ///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
  //Angle calculations
  ///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
  Wire.beginTransmission(gyro_address);                                     //Start communication with the gyro
  Wire.write(0x3F);                                                         //Start reading at register 3F
  Wire.endTransmission();                                                   //End the transmission
  Wire.requestFrom(gyro_address, 2);                                        //Request 2 bytes from the gyro
  accelerometer_data_raw = Wire.read()<<8|Wire.read();                      //Combine the two bytes to make one integer
  accelerometer_data_raw += acc_calibration_value;                          //Add the accelerometer calibration value
  if(accelerometer_data_raw > 8200)accelerometer_data_raw = 8200;           //Prevent division by zero by limiting the acc data to +/-8200;
  if(accelerometer_data_raw < -8200)accelerometer_data_raw = -8200;         //Prevent division by zero by limiting the acc data to +/-8200;

  angle_acc = asin((float)accelerometer_data_raw/8200.0)* 57.296;           //Calculate the current angle according to the accelerometer

  if(start == 0 && angle_acc > -0.5&& angle_acc < 0.5){                     //If the accelerometer angle is almost 0
    angle_gyro = angle_acc;                                                 //Load the accelerometer angle in the angle_gyro variable
    start = 1;                                                              //Set the start variable to start the PID controller
  }

  Wire.beginTransmission(gyro_address);                                     //Start communication with the gyro
  Wire.write(0x43);                                                         //Start reading at register 43
  Wire.endTransmission();                                                   //End the transmission
  Wire.requestFrom(gyro_address, 4);                                        //Request 4 bytes from the gyro
  gyro_yaw_data_raw = Wire.read()<<8|Wire.read();                           //Combine the two bytes to make one integer
  gyro_pitch_data_raw = Wire.read()<<8|Wire.read();                         //Combine the two bytes to make one integer

  gyro_pitch_data_raw -= gyro_pitch_calibration_value;                      //Add the gyro calibration value
  angle_gyro += gyro_pitch_data_raw * 0.000031;                             //Calculate the traveled during this loop angle and add this to the angle_gyro variable

  ///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
  //MPU-6050 offset compensation
  ///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
  //Not every gyro is mounted 100% level with the axis of the robot. This can be cause by misalignments during manufacturing of the breakout board.
  //As a result the robot will not rotate at the exact same spot and start to make larger and larger circles.
  //To compensate for this behavior a VERY SMALL angle compensation is needed when the robot is rotating.
  //Try 0.0000003 or -0.0000003 first to see if there is any improvement.

  gyro_yaw_data_raw -= gyro_yaw_calibration_value;                          //Add the gyro calibration value
  //Uncomment the following line to make the compensation active
  //angle_gyro -= gyro_yaw_data_raw * 0.0000003;                            //Compensate the gyro offset when the robot is rotating

  angle_gyro = angle_gyro * 0.9996 + angle_acc * 0.0004;                    //Correct the drift of the gyro angle with the accelerometer angle

  ///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
  //PID controller calculations
  ///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
  //The balancing robot is angle driven. First, the difference between the desired angle (setpoint) and actual angle (process value)
  //is calculated. The self_balance_pid_setpoint variable is automatically changed to make sure that the robot stays balanced all the time.
  //The (pid_setpoint - pid_output * 0.015) part functions as a brake function.
  pid_error_temp = angle_gyro - self_balance_pid_setpoint - pid_setpoint;
  if(pid_output > 10 || pid_output < -10)pid_error_temp += pid_output * 0.015 ;

  pid_i_mem += pid_i_gain * pid_error_temp;                                 //Calculate the I-controller value and add it to the pid_i_mem variable
  if(pid_i_mem > 400)pid_i_mem = 400;                                       //Limit the I-controller to the maximum controller output
  else if(pid_i_mem < -400)pid_i_mem = -400;
  //Calculate the PID output value
  pid_output = pid_p_gain * pid_error_temp + pid_i_mem + pid_d_gain * (pid_error_temp - pid_last_d_error);
  if(pid_output > 400)pid_output = 400;                                     //Limit the PI-controller to the maximum controller output
  else if(pid_output < -400)pid_output = -400;

  pid_last_d_error = pid_error_temp;                                        //Store the error for the next loop

  if(pid_output < 8 && pid_output > -8)pid_output = 0;                      //Create a dead-band to stop the motors when the robot is balanced

  if(angle_gyro > 30 || angle_gyro < -30 || start == 0 || low_bat == 1){    //If the robot tips over or the start variable is zero or the battery is empty
    pid_output = 0;                                                         //Set the PID controller output to 0 so the motors stop moving
    pid_i_mem = 0;                                                          //Reset the I-controller memory
    start = 0;                                                              //Set the start variable to 0
    self_balance_pid_setpoint = 0;                                          //Reset the self_balance_pid_setpoint variable
  }

  ///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
  //Control calculations
  ///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
  pid_output_left = pid_output;                                             //Copy the controller output to the pid_output_left variable for the left motor
  pid_output_right = pid_output;                                            //Copy the controller output to the pid_output_right variable for the right motor

  if(received_cmd == right) {
    pid_output_left += turning_speed;                                       //Increase the left motor speed
    pid_output_right -= turning_speed;                                      //Decrease the right motor speed
  }
  if(received_cmd == left){
    pid_output_left -= turning_speed;                                       //Decrease the left motor speed
    pid_output_right += turning_speed;                                      //Increase the right motor speed
  }
  if(received_cmd == fwd) {
    if(pid_setpoint > -2.5)pid_setpoint -= 0.05;                            //Slowly change the setpoint angle so the robot starts leaning forward
    if(pid_output > max_target_speed * -1)pid_setpoint -= 0.005;            //Slowly change the setpoint angle so the robot starts leaning forward
  }
  if (received_cmd == back){
    if(pid_setpoint < 2.5)pid_setpoint += 0.05;                             //Slowly change the setpoint angle so the robot starts leaning back
    if(pid_output < max_target_speed)pid_setpoint += 0.005;                 //Slowly change the setpoint angle so the robot starts leaning back
  }

  if(!(received_cmd == back || received_cmd == fwd)){
    if(pid_setpoint > 0.5)pid_setpoint -=0.05;                              //If the PID setpoint is larger then 0.5 reduce the setpoint with 0.05 every loop
    else if(pid_setpoint < -0.5)pid_setpoint +=0.05;                        //If the PID setpoint is smaller then -0.5 increase the setpoint with 0.05 every loop
    else pid_setpoint = 0;                                                  //If the PID setpoint is smaller then 0.5 or larger then -0.5 set the setpoint to 0
  }

  //The self balancing point is adjusted when there is not forward or backwards movement from the transmitter. This way the robot will always find it's balancing point
  if(pid_setpoint == 0){                                                    //If the setpoint is zero degrees
    if(pid_output < 0)self_balance_pid_setpoint += 0.0015;                  //Increase the self_balance_pid_setpoint if the robot is still moving forwards
    if(pid_output > 0)self_balance_pid_setpoint -= 0.0015;                  //Decrease the self_balance_pid_setpoint if the robot is still moving backwards
  }

  ///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
  //Motor pulse calculations
  ///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
  //To compensate for the non-linear behaviour of the stepper motors the folowing calculations are needed to get a linear speed behaviour.
  if(pid_output_left > 0)pid_output_left = 405 - (1/(pid_output_left + 9)) * 5500;
  else if(pid_output_left < 0)pid_output_left = -405 - (1/(pid_output_left - 9)) * 5500;

  if(pid_output_right > 0)pid_output_right = 405 - (1/(pid_output_right + 9)) * 5500;
  else if(pid_output_right < 0)pid_output_right = -405 - (1/(pid_output_right - 9)) * 5500;

  //Calculate the needed pulse time for the left and right stepper motor controllers
  if(pid_output_left > 0)left_motor = 400 - pid_output_left;
  else if(pid_output_left < 0)left_motor = -400 - pid_output_left;
  else left_motor = 0;

  if(pid_output_right > 0)right_motor = 400 - pid_output_right;
  else if(pid_output_right < 0)right_motor = -400 - pid_output_right;
  else right_motor = 0;

  //Copy the pulse time to the throttle variables so the interrupt subroutine can use them
  throttle_left_motor = left_motor;
  throttle_right_motor = right_motor;

  ///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
  //Loop time timer
  ///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
  //The angle calculations are tuned for a loop time of 4 milliseconds. To make sure every loop is exactly 4 milliseconds a wait loop
  //is created by setting the loop_timer variable to +4000 microseconds every loop.
  while(loop_timer > micros());
  loop_timer += 4000;
}

///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//Interrupt routine  TIMER2_COMPA_vect
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
ISR(TIMER2_COMPA_vect){
  //Left motor pulse calculations
  throttle_counter_left_motor ++;                                           //Increase the throttle_counter_left_motor variable by 1 every time this routine is executed
  if(throttle_counter_left_motor > throttle_left_motor_memory){             //If the number of loops is larger then the throttle_left_motor_memory variable
    throttle_counter_left_motor = 0;                                        //Reset the throttle_counter_left_motor variable
    throttle_left_motor_memory = throttle_left_motor;                       //Load the next throttle_left_motor variable
    if(throttle_left_motor_memory < 0){                                     //If the throttle_left_motor_memory is negative
      PORTD &= 0b11110111;                                                  //Set output 3 low to reverse the direction of the stepper controller
      throttle_left_motor_memory *= -1;                                     //Invert the throttle_left_motor_memory variable
    }
    else PORTD |= 0b00001000;                                               //Set output 3 high for a forward direction of the stepper motor
  }
  else if(throttle_counter_left_motor == 1)PORTD |= 0b00000100;             //Set output 2 high to create a pulse for the stepper controller
  else if(throttle_counter_left_motor == 2)PORTD &= 0b11111011;             //Set output 2 low because the pulse only has to last for 20us

  //right motor pulse calculations
  throttle_counter_right_motor ++;                                          //Increase the throttle_counter_right_motor variable by 1 every time the routine is executed
  if(throttle_counter_right_motor > throttle_right_motor_memory){           //If the number of loops is larger then the throttle_right_motor_memory variable
    throttle_counter_right_motor = 0;                                       //Reset the throttle_counter_right_motor variable
    throttle_right_motor_memory = throttle_right_motor;                     //Load the next throttle_right_motor variable
    if(throttle_right_motor_memory < 0){                                    //If the throttle_right_motor_memory is negative
      PORTD |= 0b00100000;                                                  //Set output 5 low to reverse the direction of the stepper controller
      throttle_right_motor_memory *= -1;                                    //Invert the throttle_right_motor_memory variable
    }
    else PORTD &= 0b11011111;                                               //Set output 5 high for a forward direction of the stepper motor
  }
  else if(throttle_counter_right_motor == 1)PORTD |= 0b00010000;            //Set output 4 high to create a pulse for the stepper controller
  else if(throttle_counter_right_motor == 2)PORTD &= 0b11101111;            //Set output 4 low because the pulse only has to last for 20us
}


To get the accelerometer calibration value, you will also need to run this sketch.
///////////////////////////////////////////////////////////////////////////////////////
//Terms of use
///////////////////////////////////////////////////////////////////////////////////////
//THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
//IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
//FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
//AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
//LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
//OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
//THE SOFTWARE.
///////////////////////////////////////////////////////////////////////////////////////
#include <Wire.h>

byte error, MPU_6050_found, nunchuck_found, lowByte, highByte;
int address;
int nDevices;

void setup()
{
  Wire.begin();
  TWBR = 12;
  Serial.begin(9600);
}

void loop()
{
  Serial.println("Scanning I2C bus...");

  nDevices = 0;
  for(address = 1; address < 127; address++ )
  {
    Wire.beginTransmission(address);
    error = Wire.endTransmission();

    if (error == 0)
    {
      Serial.print("I2C device found at address 0x");
      if (address<16)Serial.print("0");
      Serial.println(address,HEX);
      nDevices++;
      if(address == 0x68 || address == 0x69){
        Serial.println("This could be a MPU-6050");
        Wire.beginTransmission(address);
        Wire.write(0x75);
        Wire.endTransmission();
        Serial.println("Send Who am I request...");
        Wire.requestFrom(address, 1);
        while(Wire.available() < 1);
        lowByte = Wire.read();
        if(lowByte == 0x68){
          Serial.print("Who Am I responce is ok: 0x");
          Serial.println(lowByte, HEX);
        }
        else{
          Serial.print("Wrong Who Am I responce: 0x");
          if (lowByte<16)Serial.print("0");
          Serial.println(lowByte, HEX);
        }
        if(lowByte == 0x68 && address == 0x68){
          MPU_6050_found = 1;
          Serial.println("Starting Gyro....");
          set_gyro_registers();
        }
      }
      if(address == 0x52){
        Serial.println("This could be a Nunchuck");
        Serial.println("Trying to initialise the device...");
        Wire.beginTransmission(0x52);
        Wire.write(0xF0);
        Wire.write(0x55);
        Wire.endTransmission();
        delay(20);
        Wire.beginTransmission(0x52);
        Wire.write(0xFB);
        Wire.write(0x00);
        Wire.endTransmission();
        delay(20);
        Serial.println("Sending joystick data request...");
        Wire.beginTransmission(0x52);
        Wire.write(0x00);
        Wire.endTransmission();
        Wire.requestFrom(0x52,1);
        while(Wire.available() < 1);
        lowByte = Wire.read();
        if(lowByte > 100 && lowByte < 160){
          Serial.print("Data response normal: ");
          Serial.println(lowByte);
          nunchuck_found = 1;
        }
        else{
          Serial.print("Data response is not normal: ");
          Serial.println(lowByte);
        }
      }
    }
    else if (error==4)
    {
      Serial.print("Unknown error at address 0x");
      if (address<16)
        Serial.print("0");
      Serial.println(address,HEX);
    }
  }
  if (nDevices == 0)
    Serial.println("No I2C devices found\n");
  else
    Serial.println("done\n");
  if(MPU_6050_found){
    Serial.print("Balance value: ");
    Wire.beginTransmission(0x68);
    Wire.write(0x3F);
    Wire.endTransmission();
    Wire.requestFrom(0x68,2);
    Serial.println((Wire.read()<<8|Wire.read())*-1);
    delay(20);
    Serial.println("Printing raw gyro values");
    for(address = 0; address < 20; address++ ){
      Wire.beginTransmission(0x68);
      Wire.write(0x43);
      Wire.endTransmission();
      Wire.requestFrom(0x68,6);
      while(Wire.available() < 6);
      Serial.print("Gyro X = ");
      Serial.print(Wire.read()<<8|Wire.read());
      Serial.print(" Gyro Y = ");
      Serial.print(Wire.read()<<8|Wire.read());
      Serial.print(" Gyro Z = ");
      Serial.println(Wire.read()<<8|Wire.read());
    }
    Serial.println("");
  }
  else Serial.println("No MPU-6050 device found at address 0x68");

  if(nunchuck_found){
    Serial.println("Printing raw Nunchuck values");
    for(address = 0; address < 20; address++ ){
      Wire.beginTransmission(0x52);
      Wire.write(0x00);
      Wire.endTransmission();
      Wire.requestFrom(0x52,2);
      while(Wire.available() < 2);
      Serial.print("Joystick X = ");
      Serial.print(Wire.read());
      Serial.print(" Joystick y = ");
      Serial.println(Wire.read());
      delay(100);
    }
  }
  else Serial.println("No Nunchuck device found at address 0x52");
  while(1);
}

void set_gyro_registers(){
  //Setup the MPU-6050
  Wire.beginTransmission(0x68);                                     //Start communication with the address found during search.
  Wire.write(0x6B);                                                         //We want to write to the PWR_MGMT_1 register (6B hex)
  Wire.write(0x00);                                                         //Set the register bits as 00000000 to activate the gyro
  Wire.endTransmission();                                                   //End the transmission with the gyro.

  Wire.beginTransmission(0x68);                                     //Start communication with the address found during search.
  Wire.write(0x1B);                                                         //We want to write to the GYRO_CONFIG register (1B hex)
  Wire.write(0x00);                                                         //Set the register bits as 00000000 (250dps full scale)
  Wire.endTransmission();                                                   //End the transmission with the gyro

  Wire.beginTransmission(0x68);                                     //Start communication with the address found during search.
  Wire.write(0x1C);                                                         //We want to write to the ACCEL_CONFIG register (1A hex)
  Wire.write(0x08);                                                         //Set the register bits as 00001000 (+/- 4g full scale range)
  Wire.endTransmission();                                                   //End the transmission with the gyro

  Wire.beginTransmission(0x68);                                     //Start communication with the address found during search
  Wire.write(0x1A);                                                         //We want to write to the CONFIG register (1A hex)
  Wire.write(0x03);                                                         //Set the register bits as 00000011 (Set Digital Low Pass Filter to ~43Hz)
  Wire.endTransmission();                                                   //End the transmission with the gyro
}
