8-bit computer – control logic

Over the last few weeks, I’ve continued work on the 8-bit breadboard computer. I first added the control signals.

/images/8bit-control-signals-web.jpg

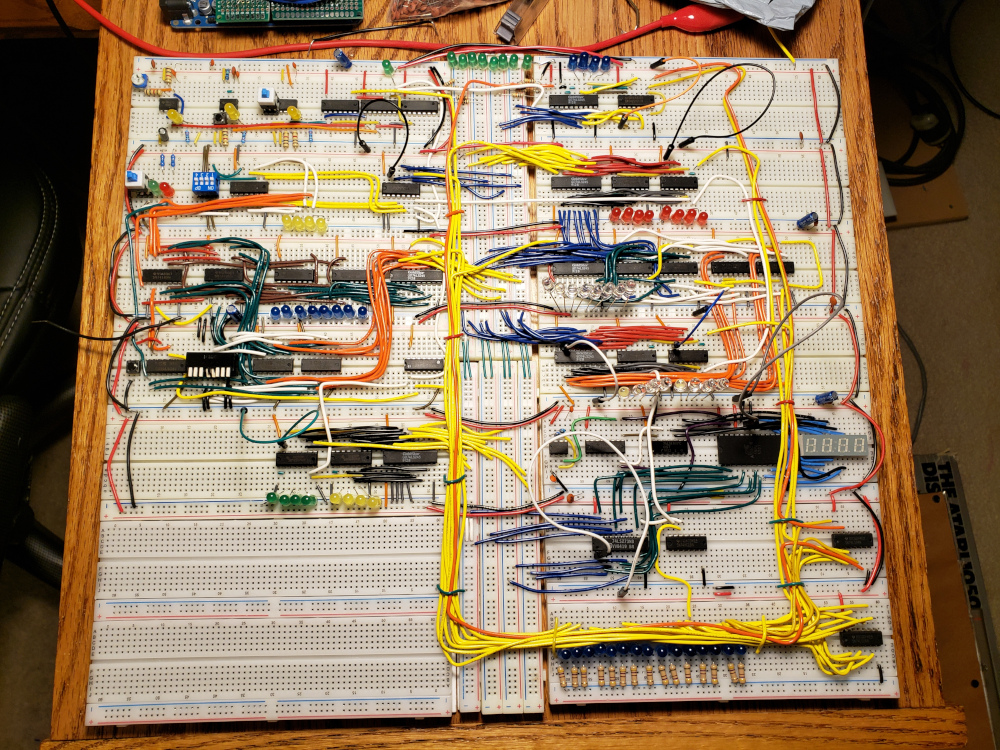

The bundle of yellow wires in the bottom right are the control lines that run to each module.

The blue LEDs underneath the bundle will show the active signals.

The next step was to define the microcode and add the control logic using two eeproms. The code snippet below shows the instructions as a binary representation of the control signals above. The data array below that defines the opcodes.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
#define HLT 0b1000000000000000  // Halt clock
#define MI  0b0100000000000000  // Memory address register in
#define RI  0b0010000000000000  // RAM data in
#define RO  0b0001000000000000  // RAM data out
#define IO  0b0000100000000000  // Instruction register out
#define II  0b0000010000000000  // Instruction register in
#define AI  0b0000001000000000  // A register in
#define AO  0b0000000100000000  // A register out
#define EO  0b0000000010000000  // ALU out
#define SU  0b0000000001000000  // ALU subtract
#define BI  0b0000000000100000  // B register in
#define OI  0b0000000000010000  // Output register in
#define CE  0b0000000000001000  // Program counter enable
#define CO  0b0000000000000100  // Program counter out
#define J   0b0000000000000010  // Jump (program counter in)

uint16_t data[] = {
  MI|CO,  RO|II|CE,  0,      0,      0,         0, 0, 0,   // 0000 - NOP
  MI|CO,  RO|II|CE,  IO|MI,  RO|AI,  0,         0, 0, 0,   // 0001 - LDA
  MI|CO,  RO|II|CE,  IO|MI,  RO|BI,  EO|AI,     0, 0, 0,   // 0010 - ADD
  MI|CO,  RO|II|CE,  IO|MI,  RO|BI,  EO|AI|SU,  0, 0, 0,   // 0011 - SUB
  MI|CO,  RO|II|CE,  IO|MI,  AO|RI,  0,         0, 0, 0,   // 0100 - STA
  MI|CO,  RO|II|CE,  IO|AI,  0,      0,         0, 0, 0,   // 0101 - LDI
  MI|CO,  RO|II|CE,  IO|J,   0,      0,         0, 0, 0,   // 0110 - JMP
  MI|CO,  RO|II|CE,  0,      0,      0,         0, 0, 0,   // 0111
  MI|CO,  RO|II|CE,  0,      0,      0,         0, 0, 0,   // 1000
  MI|CO,  RO|II|CE,  0,      0,      0,         0, 0, 0,   // 1001
  MI|CO,  RO|II|CE,  0,      0,      0,         0, 0, 0,   // 1010
  MI|CO,  RO|II|CE,  0,      0,      0,         0, 0, 0,   // 1011
  MI|CO,  RO|II|CE,  0,      0,      0,         0, 0, 0,   // 1100
  MI|CO,  RO|II|CE,  0,      0,      0,         0, 0, 0,   // 1101
  MI|CO,  RO|II|CE,  AO|OI,  0,      0,         0, 0, 0,   // 1110 - OUT
  MI|CO,  RO|II|CE,  HLT,    0,      0,         0, 0, 0,   // 1111 - HLT
};

/images/8bit-control-logic-web.jpg

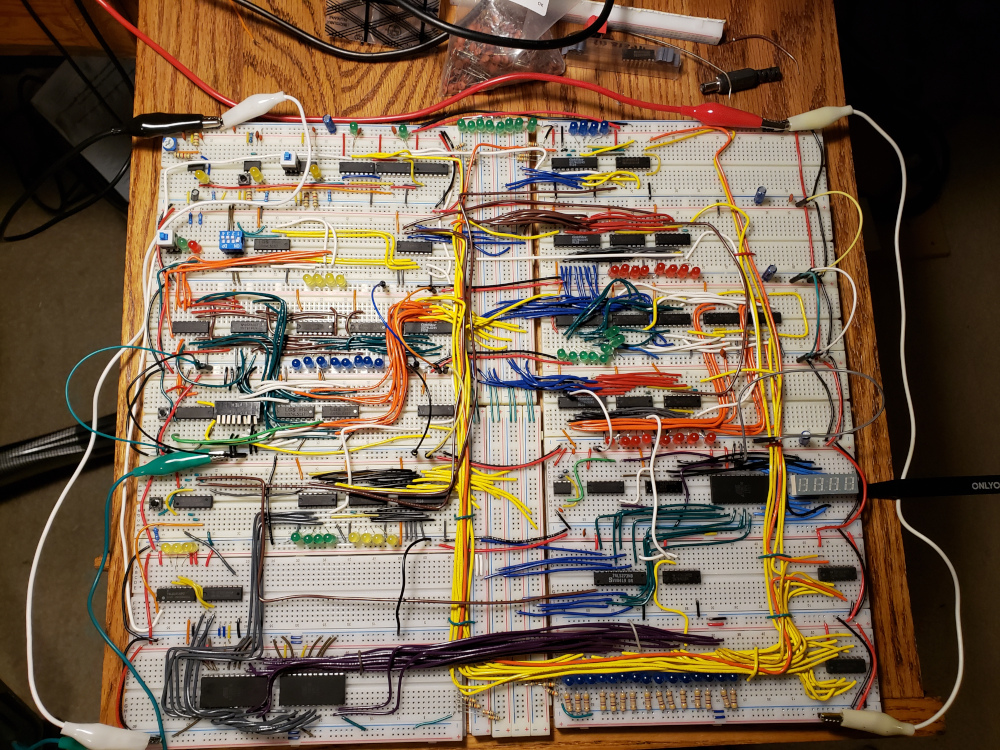

In the image above, the bottom left breadboard contains the two eeproms that hold the control logic. Above that is a counter that counts the cycles in each opcode.

The additional circuitry added to the left of the instruction register is the reset circuit. This is tied to the reset line of each module and is triggered by the push button.

I’m having issues now as the breadboard is expanding. I’m getting unreliable connectivity and garbage data at times.

In the image above, I’ve added additional power lines and alligator clip leads to try and distribute the power more evenly, but this computer is still unreliable at best.

I’m thinking of rebuilding it on perfboard and soldering it in place and I’ll probably add some bypass caps to the chips. That will hopefully fix some of the issues, but I may work on that later on down the road.
