si5351 quadrature

2018-03-31 1501 words 8 minutes

I’ve been following ZL2CTM’s video series on building a phasing sdr rig with a teensy and an si5351.

Charlie used a SN74HC74 and an RF splitter to generate the quadrature oscillator signals, but I wanted to see if I could get the si5351 to generate the quadrature signals using two of its outputs.

The Etherkit SI5351 library has an example that shows how to set the phase and I took that example along with Charlie’s teensy sketch and put together a quick example of generating quadrature signals from CLK0 and CLK1 of an SI5351.

This is just an example and the code should probably be optimized and cleaned up a bit before using it, but it does currently work for me.

From the Etherkit README:

If you need a 90 degree phase shift (as in many RF applications), then it is quite easy to determine your parameters. Pick a PLL frequency that is an even multiple of your clock frequency (remember that the PLL needs to be in the range of 600 to 900 MHz). Then to set a 90 degree phase shift, you simply enter that multiple into the phase register. Remember when setting multiple outputs to be phase-related to each other, they each need to be referenced to the same PLL.

So, in the sketch below, most of the work takes place in GetPLLFrequency(). This sets the pll frequency and the multiplier needed for set_freq_manual() and set_phase(). I’m using the set_freq_manual function to set the clock frequency and the pll frequency. Then I set the phase on CLK0 to 0 and the phase of CLK1 to the multiple set in GetPLLFrequency().

I didn’t have an lcd hooked up, so I just commented out all the lcd stuff.

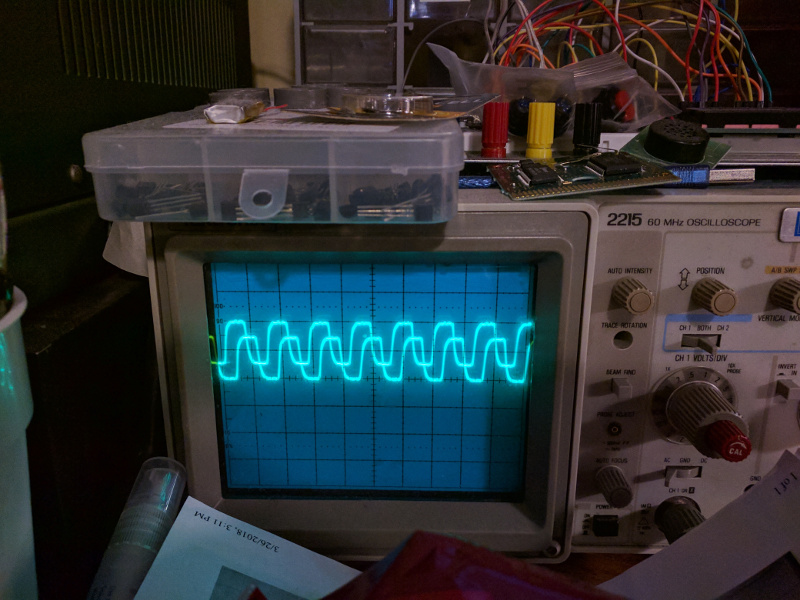

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332


#include <Wire.h>                          // I2C comms
#include "si5351.h"                        // Si5351 library
//#include <LiquidCrystal_I2C.h>             // LCD library
#include <arm_math.h>                      // needed for float64_t


// Define Constants and Vaviables
static const uint64_t bandStart = 700000000ULL;     // start of HF band
static const uint64_t bandEnd =   1400000000ULL;    // end of HF band
static const uint64_t bandInit =  730000000ULL;     // where to initially set the frequency
static const uint64_t pll_min = 60000000000ULL;
static const uint64_t pll_max = 90000000000ULL;



volatile uint64_t oldfreq = 0;
volatile uint64_t freq = bandInit ;
volatile long radix = 1000000;                // how much to change the frequency by, clicking the rotary encoder will change this.
volatile int updatedisplay = 0;


uint64_t pll_freq;
int multiple;


// Rotary Encoder
static const int pushPin = 39;
static const int rotBPin = 37;
static const int rotAPin = 36;

volatile int rotState = 0;
volatile int rotAval = 1;
volatile int rotBval = 1;
volatile int rotAcc = 0;

// Instantiate the Objects
//LiquidCrystal_I2C lcd(0x3F, 16, 2);       // set the LCD address to either 0x27 or 0x3F for a 16 chars and 2 line display
Si5351 si5351;


void setup()
{
  // Set up input switches
  pinMode(rotAPin, INPUT);
  pinMode(rotBPin, INPUT);
  pinMode(pushPin, INPUT);
  digitalWrite(rotAPin, HIGH);
  digitalWrite(rotBPin, HIGH);
  digitalWrite(pushPin, HIGH);

  // Set up interrupt pins
  attachInterrupt(digitalPinToInterrupt(rotAPin), ISRrotAChange, CHANGE);
  attachInterrupt(digitalPinToInterrupt(rotBPin), ISRrotBChange, CHANGE);

  // Initialise the lcd
//  lcd.begin();
//  lcd.backlight();

  // Initialise the DDS
  si5351.init(SI5351_CRYSTAL_LOAD_8PF, 0, 0);

  GetPLLFreq();

  si5351.set_pll(pll_freq, SI5351_PLLA);

  si5351.drive_strength(SI5351_CLK0, SI5351_DRIVE_2MA);
  si5351.drive_strength(SI5351_CLK1, SI5351_DRIVE_2MA);

  si5351.set_freq_manual(freq, pll_freq, SI5351_CLK0);
  si5351.set_freq_manual(freq, pll_freq, SI5351_CLK1);

  si5351.set_phase(SI5351_CLK0, 0);
  si5351.set_phase(SI5351_CLK1, multiple);

  si5351.pll_reset(SI5351_PLLA);

  UpdateDisplay();

}


void loop()
{
  if (freq != oldfreq)
  {
    UpdateDisplay();
    SendFrequency();
    oldfreq = freq;
  }

  if (digitalRead(pushPin) == LOW)
  {
    delay(10);
    while (digitalRead(pushPin) == LOW)
    {
      if (updatedisplay == 1)
      {
        UpdateDisplay();
        updatedisplay = 0;
      }
    }
    delay(50);
  }
}


// Interrupt routines
void ISRrotAChange()
{
  if (digitalRead(rotAPin))
  {
    rotAval = 1;
    UpdateRot();
  }
  else
  {
    rotAval = 0;
    UpdateRot();
  }
}


void ISRrotBChange()
{
  if (digitalRead(rotBPin))
  {
    rotBval = 1;
    UpdateRot();
  }
  else
  {
    rotBval = 0;
    UpdateRot();
  }
}


void UpdateRot()
{
  switch (rotState)
  {

    case 0:                                         // Idle state, look for direction
      if (!rotBval)
        rotState = 1;                               // CW 1
      if (!rotAval)
        rotState = 11;                              // CCW 1
      break;

    case 1:                                         // CW, wait for A low while B is low
      if (!rotBval)
      {
        if (!rotAval)
        {
          // either increment radixindex or freq
          if (digitalRead(pushPin) == LOW)
          {
            updatedisplay = 1;
            if (radix == 1000000)
              radix = 100000;
            else if (radix == 100000)
              radix = 10000;
            else if (radix == 10000)
              radix = 1000;
            else if (radix == 1000)
              radix = 100;
            else if (radix == 100)
              radix = 10;
            else if (radix == 10)
              radix = 1;
            else
              radix = 1000000;
          }
          else
          {
            freq = (freq + radix);
            if (freq > bandEnd)
              freq = bandEnd;
          }
          rotState = 2;                             // CW 2
        }
      }
      else if (rotAval)
        rotState = 0;                               // It was just a glitch on B, go back to start
      break;

    case 2:                                         // CW, wait for B high
      if (rotBval)
        rotState = 3;                               // CW 3
      break;

    case 3:                                         // CW, wait for A high
      if (rotAval)
        rotState = 0;                               // back to idle (detent) state
      break;

    case 11:                                        // CCW, wait for B low while A is low
      if (!rotAval)
      {
        if (!rotBval)
        {
          // either decrement radixindex or freq
          if (digitalRead(pushPin) == LOW)
          {
            updatedisplay = 1;
            if (radix == 1)
              radix = 10;
            else if (radix == 10)
              radix = 100;
            else if (radix == 100)
              radix = 1000;
            else if (radix == 1000)
              radix = 10000;
            else if (radix == 10000)
              radix = 100000;
            else if (radix == 100000)
              radix = 1000000;
            else
              radix = 1;
          }
          else
          {
            freq = (freq - radix);
            if (freq < bandStart)
              freq = bandStart;
          }
          rotState = 12;                            // CCW 2
        }
      }
      else if (rotBval)
        rotState = 0;                               // It was just a glitch on A, go back to start
      break;

    case 12:                                        // CCW, wait for A high
      if (rotAval)
        rotState = 13;                              // CCW 3
      break;

    case 13:                                        // CCW, wait for B high
      if (rotBval)
        rotState = 0;                               // back to idle (detent) state
      break;
  }
}


void UpdateDisplay()
{
/*  lcd.cursor();                                     // Turn on the cursor
  lcd.setCursor(0, 0);
  lcd.print("        ");
  lcd.setCursor(0, 0);
  lcd.print(freq);
  lcd.setCursor(10, 0);
  lcd.print("ZL2CTM");

  lcd.setCursor(0, 1);
  lcd.print("        ");
  lcd.setCursor(0, 1);

  if (freq > 9999999)
  {
    if (radix == 1)
      lcd.setCursor(7, 0);
    if (radix == 10)
      lcd.setCursor(6, 0);
    if (radix == 100)
      lcd.setCursor(5, 0);
    if (radix == 1000)
      lcd.setCursor(4, 0);
    if (radix == 10000)
      lcd.setCursor(3, 0);
    if (radix == 100000)
      lcd.setCursor(2, 0);
    if (radix == 1000000)
      lcd.setCursor(1, 0);

  }
  if (freq <= 9999999)
  {
    if (radix == 1)
      lcd.setCursor(6, 0);
    if (radix == 10)
      lcd.setCursor(5, 0);
    if (radix == 100)
      lcd.setCursor(4, 0);
    if (radix == 1000)
      lcd.setCursor(3, 0);
    if (radix == 10000)
      lcd.setCursor(2, 0);
    if (radix == 100000)
      lcd.setCursor(1, 0);
    if (radix == 1000000)
      lcd.setCursor(0, 0);
  }
 */
}


void GetPLLFreq() {

    float64_t f_pll_freq;

    for (int i = 10; i <= 200; i = i + 2) {
        f_pll_freq = freq * i;
        if (f_pll_freq >= pll_min) {
            if (f_pll_freq <= pll_max) {
               if (f_pll_freq == floor(f_pll_freq)) {
                  pll_freq = f_pll_freq;
                  multiple = pll_freq/freq;
                  break;
              }
            }
        }
    }
}

void SendFrequency()
{

  GetPLLFreq();

  si5351.set_pll(pll_freq, SI5351_PLLA);

  si5351.set_freq_manual(freq, pll_freq, SI5351_CLK0);
  si5351.set_freq_manual(freq, pll_freq, SI5351_CLK1);

  si5351.set_phase(SI5351_CLK0, 0);
  si5351.set_phase(SI5351_CLK1, multiple);

  si5351.pll_reset(SI5351_PLLA);
}
